Our load balancing operates through IPv6 for stability across our network as it grows. Many docker images are generated in ways that bind IPv6 ports and will work out of the box. Others, e.g. those created with build services like cog or truss may not. If you are having problems with Container Gateway connections this may be the case. However your dreams of running on SaladCloud are not lost, you just need to set an IPv6 host. Alternatively, adding socat to your image is an easy way to route IPv6 requests and get cooking.

Checking IPv6 in your container

To check if IPv6 is enabled in your container, run a terminal in your container and run the following commands:

Adapt this to the appropriate package manager for the base distro of your container, e.g. apk add for alpine

apt-get update
apt-get install net-tools
netstat -topln

If you see output with an IPv6 line, you're good to go!

Active Internet connections (only servers)
Proto Recv-Q Send-Q Local Address           Foreign Address         State       PID/Program name     Timer
tcp        0      0 0.0.0.0:5000            0.0.0.0:_               LISTEN      7/python             off (0.00/0/0)
tcp6       0      0 :::8888                 :::_                    LISTEN      571/socat            off (0.00/0/0)

However if there is no tcp6 line, follow the instructions below to add IPv6 support to your container.

Active Internet connections (only servers)
Proto Recv-Q Send-Q Local Address           Foreign Address         State       PID/Program name
tcp        0      0 0.0.0.0:5000            0.0.0.0:\*               LISTEN      7/python

Configuring IPv6

Using an IPv6 host

If you are defining the host of your server directly, e.g. with a host of localhost, replace it with the IPv6 equivalent :: Equivalently replace a host of 0.0.0.0with the IPv6 equivalent*.

Uvicorn

from fastapi import FastAPI
import uvicorn

app = FastAPI()


@app.get("/hc")
async def health_check():
    return "OK"


if __name__ == "__main__":
	uvicorn.run(app, host='::', port=1234)

uvicorn main:app --host '::' --port 1234

Gunicorn

gunicorn -w 4 -k uvicorn.workers.UvicornWorker main:app --bind '[::]:1234'

Node.js

const http = require('http');

const hostname = '::';  // Listen on all IPv6 addresses
const port = 1234;

const server = http.createServer((req, res) => {
  res.statusCode = 200;
  res.setHeader('Content-Type', 'text/plain');
  res.end('Hello World\n');
});

server.listen(port, hostname, () => {
  console.log(`Server running at http://[${hostname}]:${port}/`);
});

Express.js

const express = require('express');
const app = express();

const hostname = '::';  // Listen on all IPv6 addresses
const port = 1234;

app.get('/', (req, res) => {
  res.send('Hello World!');
});

app.listen(port, hostname, () => {
  console.log(`Server running at http://[${hostname}]:${port}/`);
});

Fastify

const fastify = require('fastify')({ logger: true });

// Declare a route
fastify.get('/', async (request, reply) => {
  return { hello: 'world' };
});

// Run the server!
const start = async () => {
  try {
    await fastify.listen({ port: 1234, host: '::' });
    fastify.log.info(`server listening on ${fastify.server.address().port}`);
  } catch (err) {
    fastify.log.error(err);
    process.exit(1);
  }
}
start();

IPv6 with socat in custom containers

If you have direct access to the dockerfile used to create your image, you can modify it to install and start socat which will forward IPv6 to IPv4. For the example below, you would enter port 8888 for SaladCloud, which would then be routed to IPv4 port 8080. Adapt as needed for your setup. Alternatively, the socat command can be included in an entryfile or setup script. Once you've rebuilt the image, check with netstat as above to verify it has worked.

...
RUN apt-get install -y socat
...
CMD ... & socat TCP6-LISTEN:8888,fork TCP4:127.0.0.1:8080;

IPv6 with cog through socat

If you are using cog to create your container, a few small changes can enable socat to route IPv6 to IPV4 within the container.

1. Add socat to the system_packages section of cog.yaml. For example,

   Python

   build:
   ...
     system_packages:
       - socat
   predict: "predict.py:Predictor"

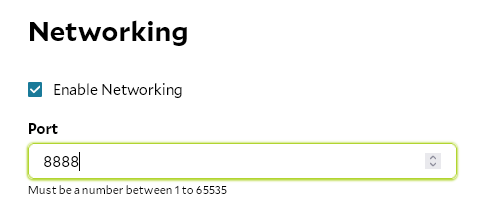

2. In predict.py (or other file included in the predict section of cog.yaml) add import os, and add os.system("socat TCP6-LISTEN:8888,fork TCP4:127.0.0.1:5000 &") to setup. Update 5000 to the port your container is expecting. The other port, here, 8888 is what would be used when setting up the container group deployment.
